Electrical Specifications

• Light Source Power: 1000W High-power LED
• Voltage: AC 110V–240V, 50/60Hz (can be adapted according to actual requirements)
• Power Consumption: 1000W

Light Source

• LED Chip: Imported high-efficiency chip
• Color Temperature: 3200K / 5600K / 8500K (adjustable)
• Color Rendering Index (CRI): >90
• Lifespan: 50,000 hours

Optical System

• Beam Angle / Zoom: 6°–10° linear zoom
• Focus: Electronic linear focus via push rod
• Dimming: 0–100% linear dimming
• Control: Full electronic control (no manual operation required)

Color System

• Colors: White, Red, Yellow, Green, Blue, Orange (5-color effect)

Dynamic Effects

• Zoom & Focus: Smooth linear adjustment via electronic push rod
• Strobe: 0–100% adjustable variable-speed strobe
• Special Effects: Color mixing and close-up spot control

Prism / Effect System

• Optional configuration: Glass gobo or prism effect system (depending on version)

Cooling System

• Heat Conduction: 12 copper tubes (8mm thick)
• Heat Dissipation: Large-area aluminum fin structure for efficient cooling
• Housing: All-aluminum alloy body, lightweight and durable
• Cooling Control: Intelligent airflow-guided heat dissipation system

Control System

• Control Mode: DMX512
• Functions: Electronic zoom, focus, and full 512-channel control
• Operation Design: Rotating control panel for improved usability

Protection & Housing

• IP Rating: IP20 (indoor use only)
• Housing Material: High-strength aluminum alloy structure

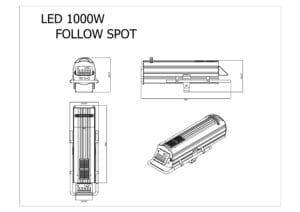

Physical Specifications

• Weight: 38 kg
• Dimensions: To be confirmed based on final product design
