HL-BL4100

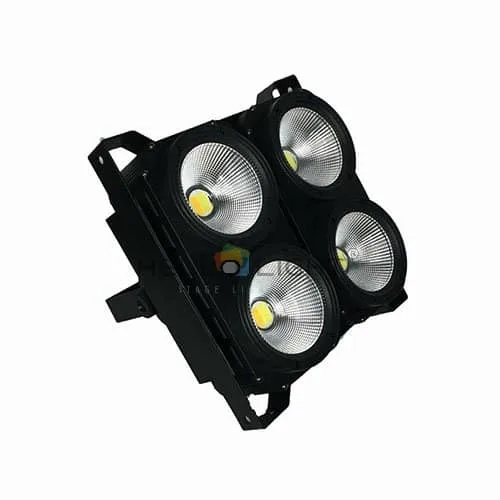

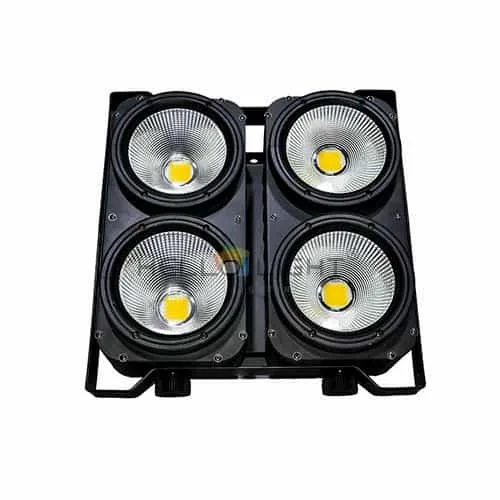

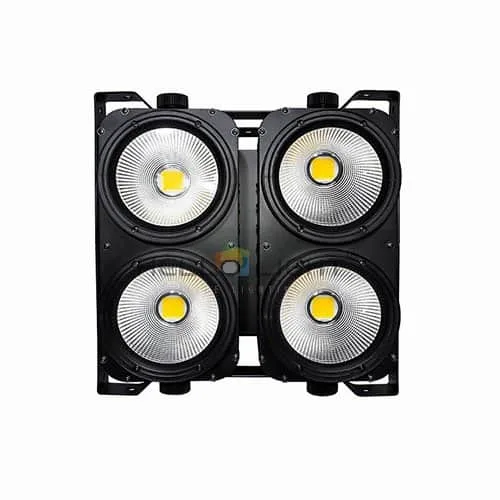

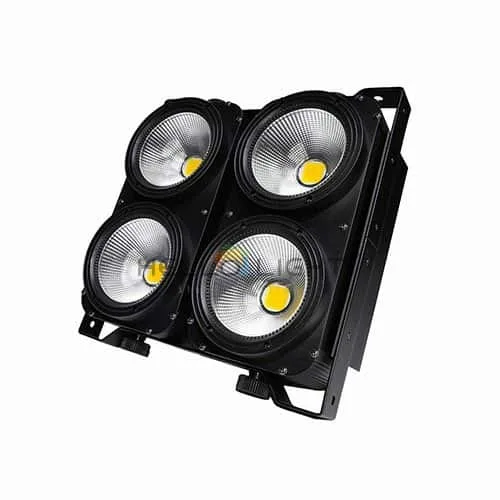

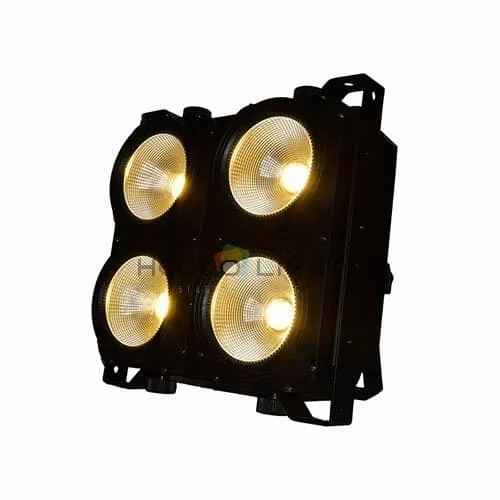

HL-BL4100 4 Eye Blinder Light

    4 Eye Blinder Light equips 4 x 100W warm white LED, an LED fixture with a classic Blinder appearance. Fitted with the special patented plug and bracket, this item can be easily combined with each other or other SP04V series by the horizontal or vertical installation or rigged without any tools, for adding creative options and offering multiple located rotation angles.

Brighter than the traditional audience blinder, with an outstanding variable speed strobe effect and IPX4 protection rating, the STAGE BLINDER IP CW is suitable for large and medium-sized concerts, variety acts, and other professional stage or entertainment applications requiring a striking visual impact.

Features

  • Light Source: 4 x 100W cool white LED
  • Color Temperature: 5000±300K
  • Beam Angle: 50°
  • 0~100% smooth dimming
  • Outstanding strobe effect with variable speed
  • Multiple units can be joined horizontal and vertical rapidly without an accessory or tool
  • Provide multiple rotation angles, each of them can be located easily
  • Ultra-high brightness, higher than traditional spectator lamp
  • Compact design, excellent thermal design, easy to install
  • Suitable for large and medium concerts, events, professional stages, and entertainment venues that need high brightness environment
  • Flicker-free management
  • Dust-proof and oil-proof design
  • Protection Rating: IPX4

Technical Specification

Light Source

  • Light Source: 4 x 100W cool white LED
  • LED life expectancy: 10000 hours



Optical System

  • The advanced optical system ensures the clear and excellent static effect



Control and Program

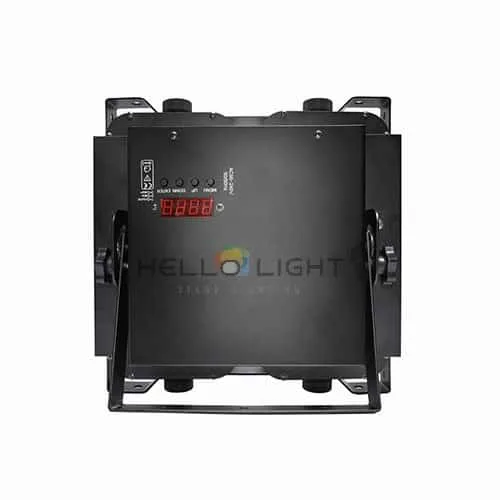

  • 4 buttons
  • Display: LED display
  • Protocols: DMX512
  • DMX Protocol modes: 4
  • Control channels: 1,2,4,6
  • Dimmer: 8-bit or 16 bit
  • Upgrade the firmware via the DMX link



Electrical and Connectors

  • Power supply with electronic auto-ranging
  • Input voltage range: AC 100-240 V, 50/60 Hz
  • Power consumption: 400 W

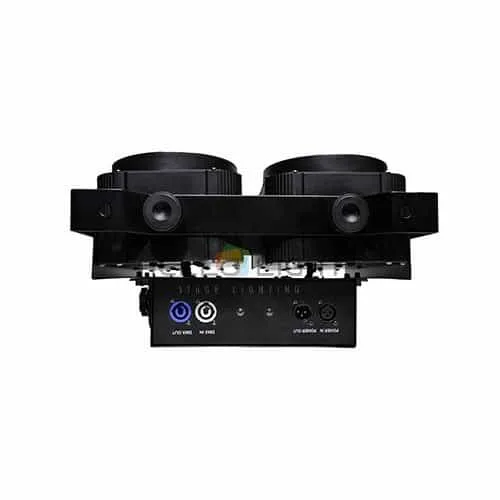

  • Waterproof Power Connector in/out
  • Data in/out: 3-pin



Fixture Specification

  • Height: 370 mm
  • Width: 370 mm
  • Depth: 220 mm
  • Weight: 11 kg



Work Environment

  • Maximum ambient temperature: 40°C
  • Maximum surface temperature: 65°C
  • Minimum operating temperature: 0°C
  • Protection Rating: IPX4



Approvals

  • CE Compliant



Installation

  • Horizontally or vertically mounting are available
  • The operating position is universal
  • The feet supported by 3 locking points
  • Safety cable attachment point



Included Items

  • User Manual



Optional Accessories (with item code)

  • Flight Case:(6 in 1)
  • Clamp:
  • Safety cable:

Effect Demonstration

hl lb4100 4 eye blinder light (10)

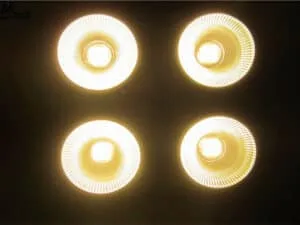

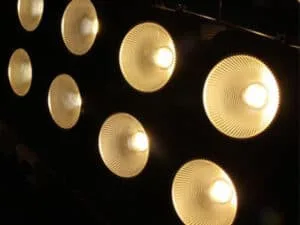

hl lb4100 4 eye blinder light (11) hl lb4100 4 eye blinder light (12)

Product Video

Inspiration

hl pc450 4pcs 50w cob par light (4) application 0000 wedding

Dimensions

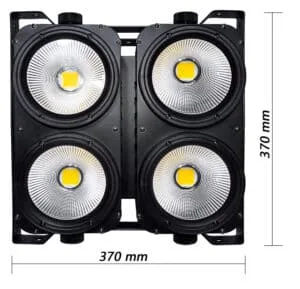

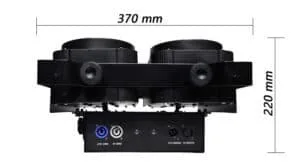

hl lb4100 4 eye blinder light (8)        hl lb4100 4 eye blinder light (9)
