Product Overview

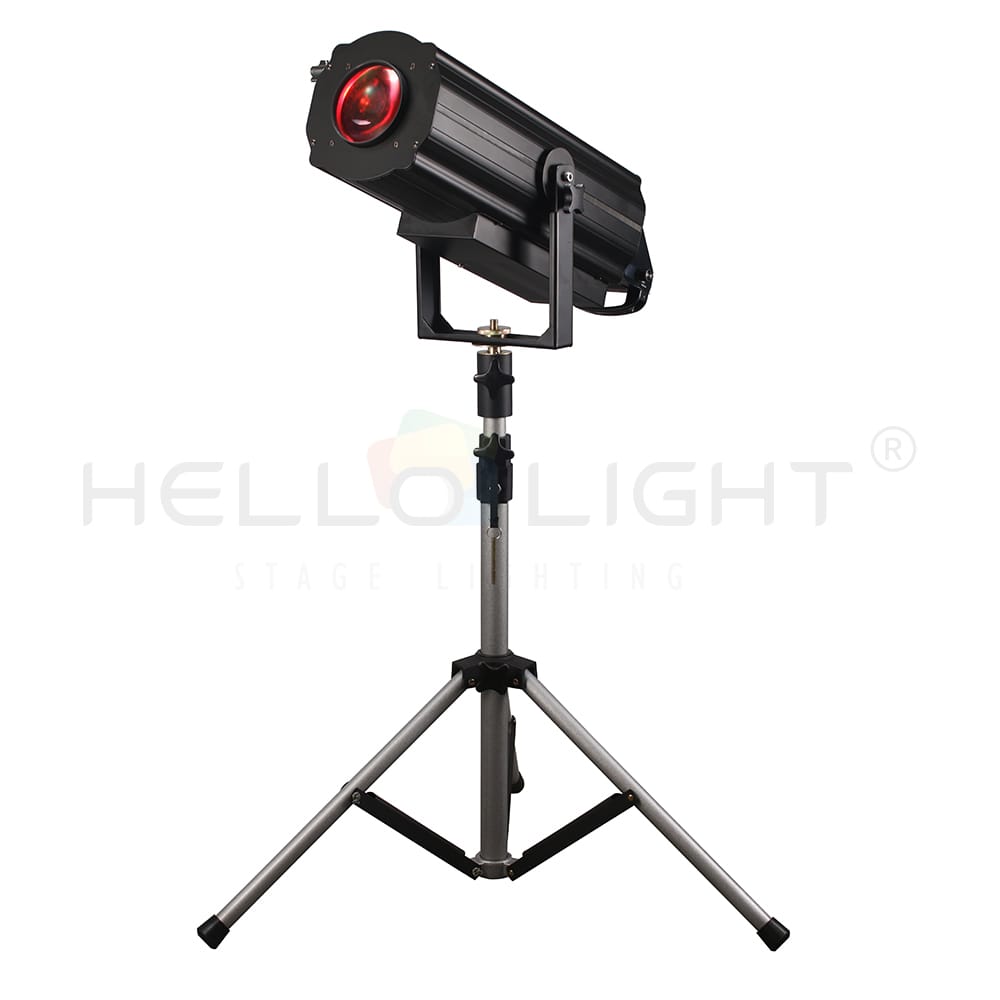

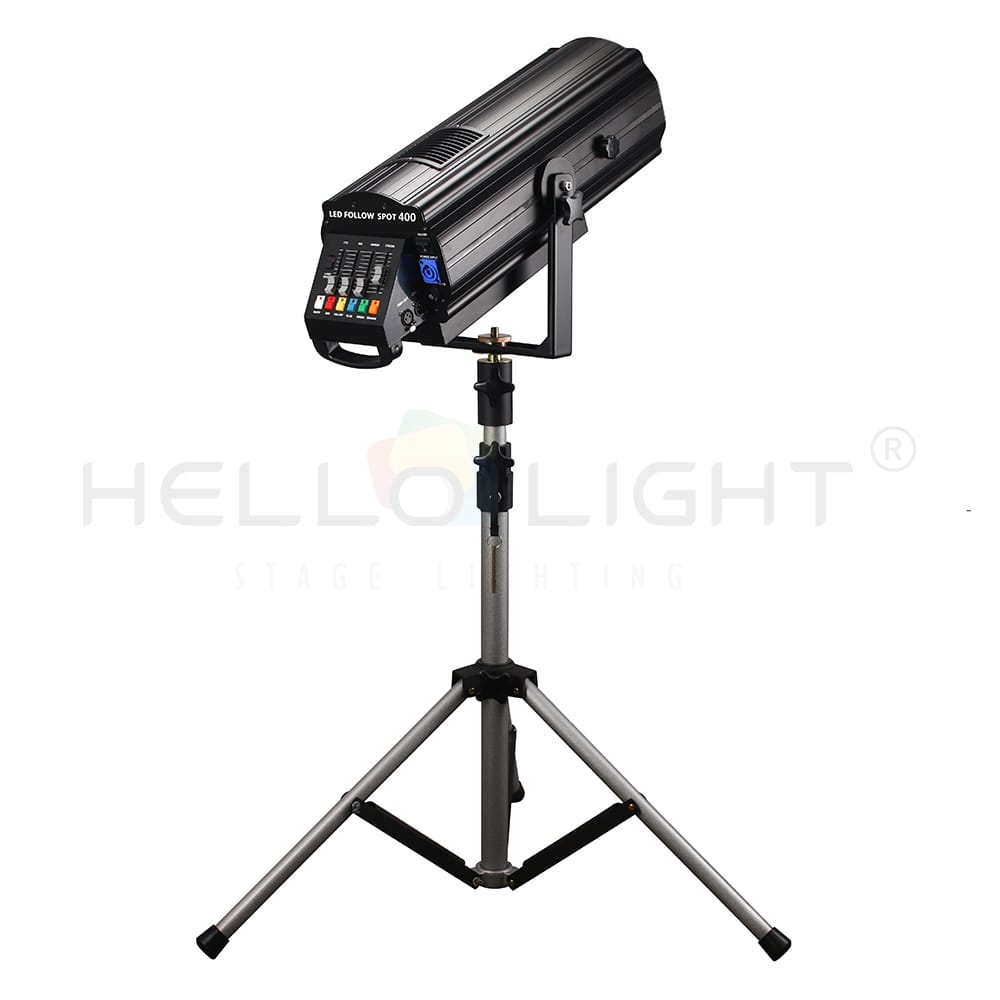

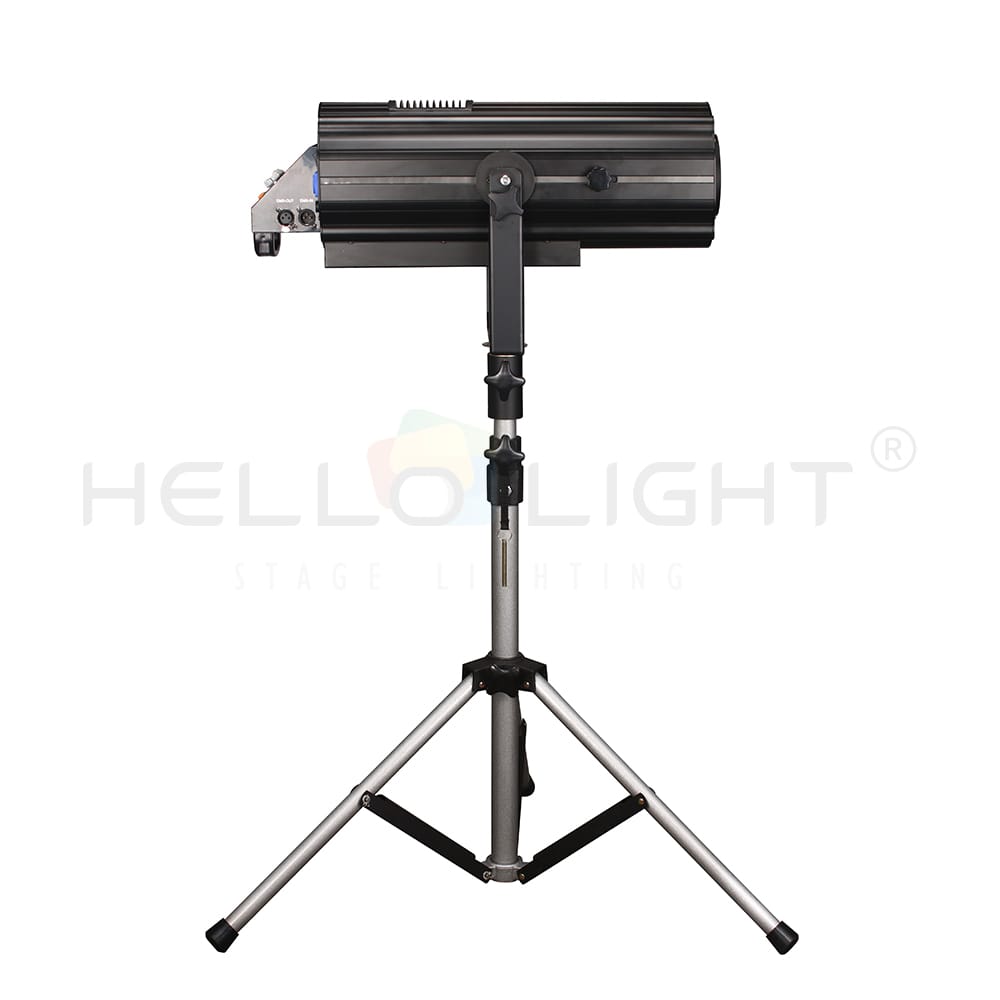

The 400W LED Follow Spot Light is a professional spotlight fixture designed for theaters, stages, live performances, TV studios, and event venues. Equipped with a high-brightness 400W LED module using imported chips, the fixture delivers stable output, excellent color rendering, and long operational life. Featuring smooth dimming, multiple color options, motorized zoom adjustment, and an efficient cooling system, it provides reliable performance for professional lighting applications.
Application Areas
Product Advantages
✔ High Brightness & Stable Output
✔ Long-Life Imported LED Chips
✔ Professional Multi-Color System
✔ Smooth Linear Dimming
✔ Efficient Copper Heat Pipe Cooling
✔ Lightweight & Easy Installation
✔ Ideal for Professional Spotlight Applications
Electrical Specifications
Power Supply: AC 220V–240V, 50–60Hz
Power: 600W
Light Source
LED Module: 400W LED with imported chips
Color Temperature: 3200K / 4500K / 6500K
Lifespan: up to 25,000 hours
One-button control for bulb on/off; after power failure, wait at least 10 seconds before restart
Optical System
Beam Angle: 9°
Aperture: Adjustable via slider; sharpness manually adjusted
Dimming: 0–100% linear dimming, motor-driven telescopic adjustment
Projection Distance: 5–50 meters
Color System
Colors: White, Red, Orange, Yellow, Green, Blue (5-color + white)
Dynamic Effects
Strobe / Flicker: 1–11 times/second
Focus / Aperture: Motor-driven linear adjustment, manual fine-tuning possible
Cooling System
Heat Conduction: Six copper pipes, 6mm thick
Heat Dissipation: 66 large-area aluminum fins for efficient cooling, ensuring LED lifespan and minimal light decay
Mounting & Control
Bracket: High-load-bearing, aesthetic design for easy installation and improved work efficiency
Physical Specifications

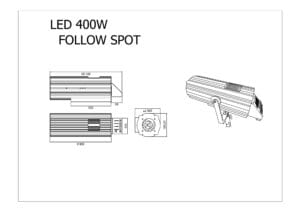

Body Dimensions: 598 × 193 × 210 mm
Body Net Weight (including handle): 12 kg
Light Fixture Carton Dimensions: 760 × 370 × 300 mm
Light Fixture Carton Weight: 13.2 kg
Bracket Dimensions (carton): 870 × 170 × 170 mm
Bracket Weight (excluding carton): 5.3 kg
Bracket Weight (including carton): 5.9 kg
Flight Case Dimensions: 885 × 450 × 425 mm
Flight Case Weight: 17.7 kg
Total Flight Case Weight: 35 kg
