KL-COB450 IP

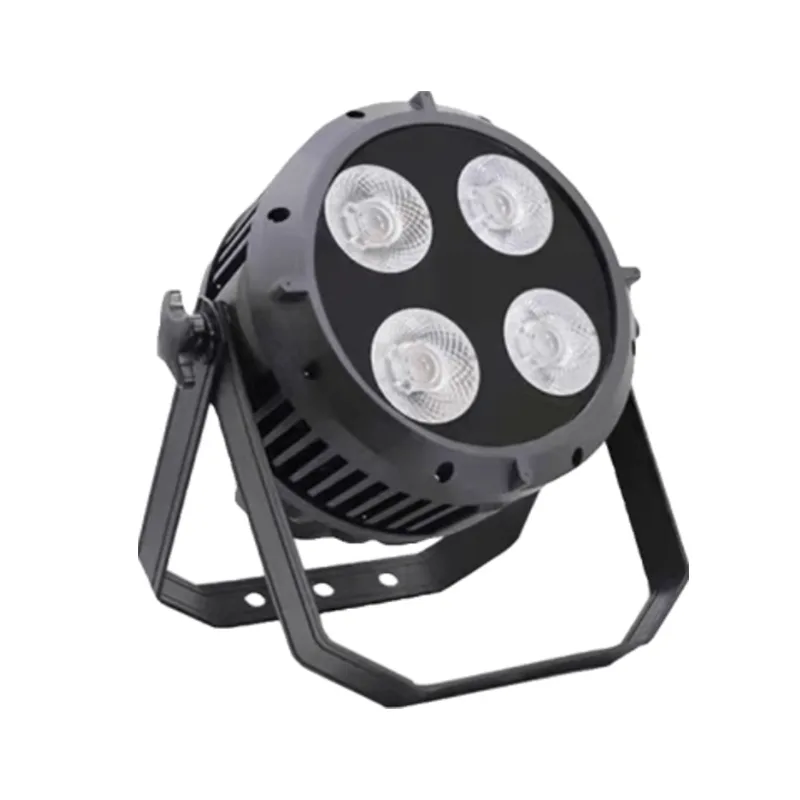

4×50W COB Waterproof Spotlight

Product Overview

  • The 4×50W COB LED Waterproof Fresnel Spotlight is a professional lighting fixture designed for stage performances, outdoor events, theaters, and rental applications. Equipped with four high-efficiency COB LED modules, electric focus adjustment, and IP65 waterproof protection, it delivers smooth, uniform illumination with excellent flexibility for professional lighting environments.

Application Areas

  • Outdoor Stage Performances
  • Concerts
  • Theater Productions
  • TV & Film Studios
  • Live Events
  • Architectural Lighting
  • Rental Lighting Systems
  • Large-Scale Events

Product Advantages

  • Four 50W COB LED modules provide powerful and uniform light output
  • IP65 waterproof protection for reliable outdoor operation
  • Multiple color options: 3200K / 5600K / WC / RGBW
  • Adjustable color temperature from 3200K to 6500K
  • Electric focus system with 10°–60° beam angle adjustment
  • Smooth 0–100% linear dimming for accurate brightness control
  • Supports DMX512, self-propelled, and master-slave control modes
  • Long LED lifespan of over 20,000 hours
  • Compact structure with professional-grade performance

Technical Specification

Light Source

  • Light Source: 4 × 50W COB LED
  • Lamp Bead Life: >20,000 hours
  • Color Options:
    • 3200K
    • 5600K
    • WC
    • RGBW

Electrical Specifications

  • Input Voltage: AC100–240V, 50/60Hz
  • Power Consumption: 220W

Optical System

  • Color Temperature: 3200K–6500K Adjustable
  • Focus System: Electric Focus
  • Focusing Angle: 10°–60°

Dimming & Control System

  • Dimming: 0–100% Linear Dimming
  • Control Modes:
    • DMX512
    • Self-Propelled Mode
    • Master-Slave Mode
  • DMX Interface: 3-Core Signal Interface

Protection System

  • Protection Rating: IP65
  • Suitable for Indoor and Outdoor Professional Lighting Applications

Physical Specifications

  • Product Size: 410 × 264 × 180 mm
  • Net Weight: 7 kg

Effect Demonstration

Product Video

Dimensions

Accessories

Downloads

Manual

DMX Channel

Product Data

Software Updates

CAD Drawing

Product Inquiry
