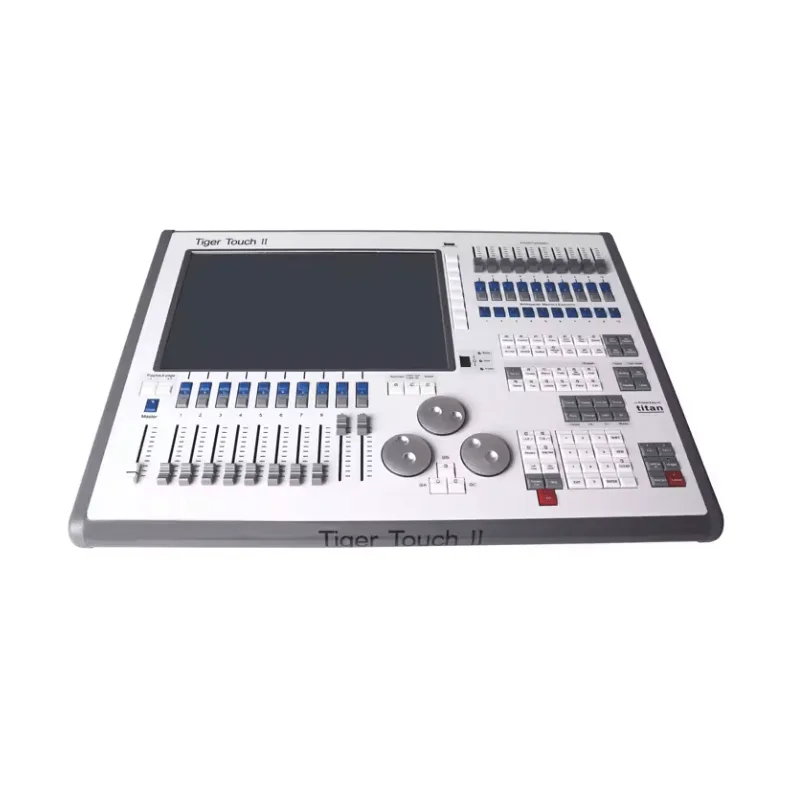

KL-DMX-TT Plus

Tiger Touch Console Plus

Product Overview

The Professional Titan Lighting Console is a powerful intelligent lighting control system designed for concerts, theaters, TV studios, touring productions, and large-scale live events. Running the advanced Titan 10.0 operating system, the console features high-performance hardware, multi-language support, Art-Net networking, wireless control, built-in visualization software, and powerful playback capabilities for professional lighting programming and operation.

Application Areas

  • Concert Touring
  • Theater Productions
  • TV Studios
  • Live Events
  • Clubs & Entertainment Venues
  • Rental Lighting Companies
  • Large-Scale Stage Productions

Product Advantages

✔ Powerful Titan 10.0 Lighting Control System
✔ High-Performance Core i5 Hardware Platform
✔ Large Touchscreen Professional Interface
✔ Massive DMX Channel Capacity
✔ Art-Net & Wireless Control Support
✔ Built-in Visualisation & Media Control
✔ Professional Playback & Programming Features
✔ Ideal for Large-Scale Intelligent Lighting Systems

Technical Specification

Product Features

  • Titan 10.0 Professional Operating System
  • Intel Core i5 Processor
  • 15.6-Inch High-Resolution Industrial Touchscreen
  • Built-in UPS Power Supply
  • Supports Art-Net Network Protocol
  • Expandable DMX Output System
  • Multi-Language User Interface
  • Powerful Playback & Programming Functions
  • Built-in Visualiser Lighting Visualization Software
  • Wi-Fi Wireless Control Support
  • MIDI Timecode Synchronization
  • Massive Built-in Fixture Library
  • Supports Remote Control via Mobile Devices

Hardware Specifications

System Configuration

  • Operating System: Titan 10.0
  • CPU: Intel Core i5
  • SSD:
    • Kingston 120GB High-Speed Solid State Drive
  • Memory:
    • Kingston 4GB RAM

Display System

  • 15.6-Inch High-Resolution Touchscreen
  • Industrial Grade Display Panel
  • Supports Graffiti-Style Screen Identification

Power System

  • Built-in UPS Backup Power Supply
  • Operates Up To 1 Hour Without External AC Power

DMX & Network Control

Channel Capacity

  • Supports:
    • 6144 Channels
    • or 3072 Channels Output Modes

Art-Net Support

  • Supports Art-Net Network Protocol
  • Expandable To:
    • 8 DMX Output Lines
    • or 4 Output Domains

Playback Control

  • 20 Playback Faders
  • Supports Playback of More Than 1000 Programs
  • 10 Macro Function Buttons for Fast Operation

Programming & Effects

Attribute Control

  • Powerful Attribute Control Window
  • CMY / RGB Color Picker System

Graphics Generator

  • Fast & Easy Graphics Generator
  • Built-in Classified Graphic Effects

Media & Visualization

CIPT Protocol Support

  • Displays Media Server Clip Thumbnails Directly On Console

Visualization Software

  • Built-in Visualiser Stage Lighting Visualization Software

Wireless & Remote Control

Wi-Fi Support

  • Wireless Fixture Control
  • Supports Mobile Remote Control Devices:
    • iPhone
    • iPad Touch

Fixture Library System

  • Thousands of Built-in Fixture Libraries
  • Built-in Fixture Library Editing Software
  • Supports Real-Time Fixture Library Editing

Audio & Timecode Functions

  • Supports MIDI Timecode Synchronization
  • Sound & Light Synchronization Function
  • Console Can Play Music and Send Timecode for Lighting Playback Control
