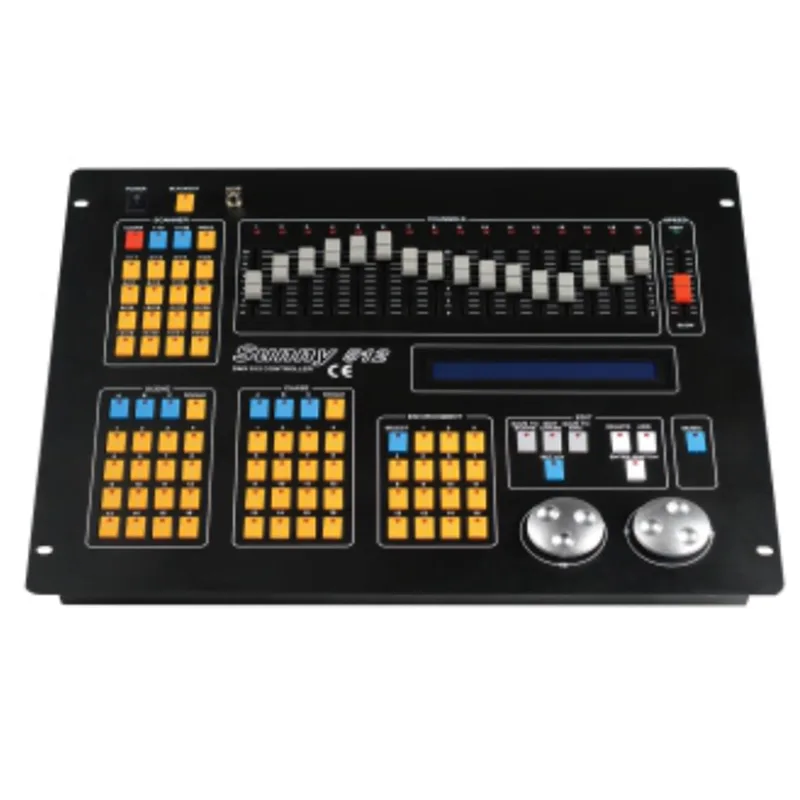

Working voltage: AC110V 〜 240VFrequency: 50 / 60HzFeatures:DMX512 standard. 512 DMX control channels.2 photoelectric isolation independent output drive ports,with resistance to 1500VDC electrical shock. Independentboard structure, easy to replace.Can control 32 sets of 16-channel scannersLarge LCD display with backlight for displaying variousoperating parameters.16 channel faders, 1 speed control fader.Storage capacity of 1600 chases. 48 chase programs, eachprogram has a maximum of 100 steps. Each step’s speedand gradient parameters are set independently. Optionalmusic synchronization or manual speed control.With the cooperation of the chase rate fader, the time rangeof the program step can be from 0.03s-180s48 scanner scenes that can be called directly.It can run 4 chase programs and 48 scenes at the same time,and can simultaneously run 32 lanterns manually (liftinglights). The manual operation (lifting lights) has the channelrelease function.The X / Y of different kinds of scanners are controlled by thedata wheel, and can also be controlled by the faders.16Bit computer light X / Y control accuracy.15 environment keys to quickly call different scenes, chases,and manual operation combinations.The music trigger signal source can be taken from the audioline input or the built-in microphone pickup.It is easy to learn and use, and the operation efficiency ishigher.Shutdown data remains.Built-in high-performance green switching power supply,with extremely low power supply harmonic distortion andextremely wide voltage application range, in line with worldpower requirements (90V-240V).Size: 56.5 × 40 × 17.5cmGross weight: 8kg
