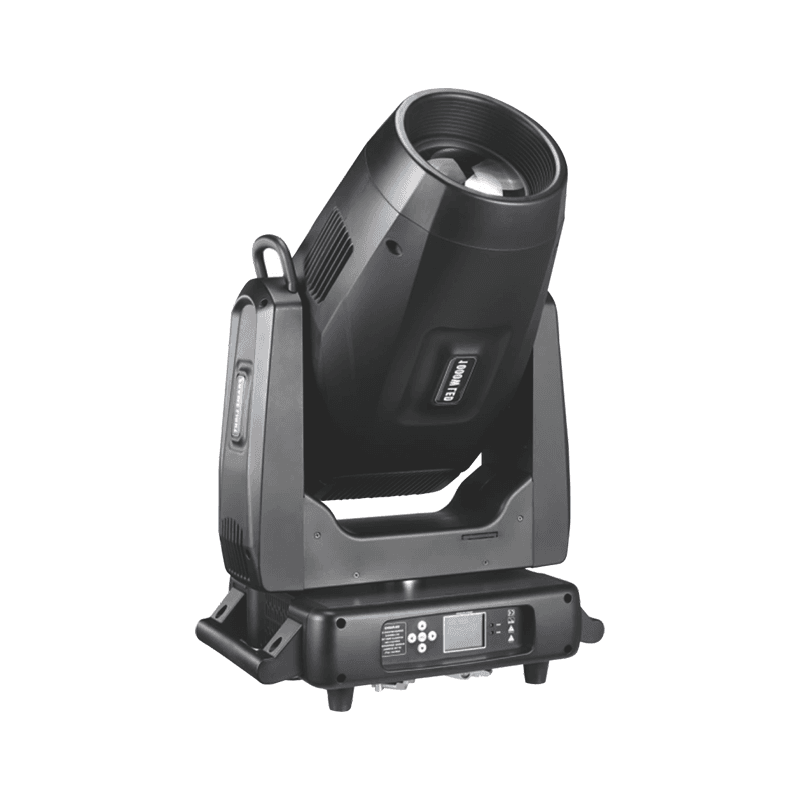

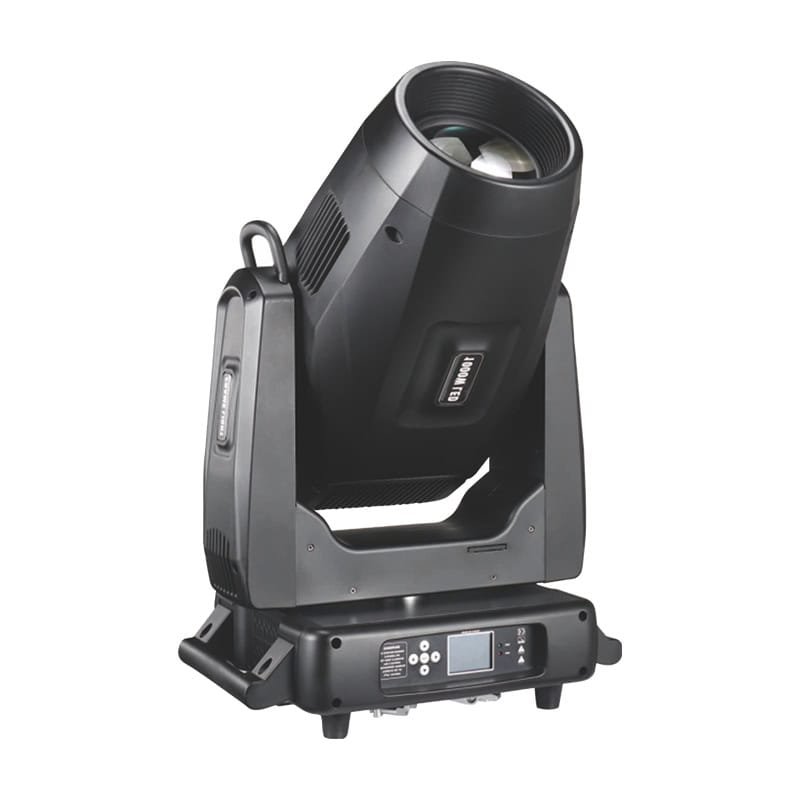

Light Source
Light source: 1000W LED module
LED life: 20,000 hours
Optical System
Color temperature: 6500K
Diameter: 150mm
Color rendering index: standard mode Ra>75, high display mode
Ra>90
Luminous flux: 32000LM
Power Supply
Input voltage: AC100-240V, 50/60Hz
Rated power: 1050W
Functional Effect
Fixed color: 6 colors + white light
Color mixing system: Independent CMY color mixing system
Color temperature adjustment: independent CTO 2800K-6500K
linear adjustment
Prism disk: rotating 3 prisms + 6 rows of mirrors”
Effect panel: dynamic effects such as stunning simulated
dynamic flames, gurgling water, etc.
Fixed gobos: 11 plug-in fixed gobos with an outer diameter of
25.4mm+white circle
Rotating gobo: 7 gobos (pluggable) with an outer diameter of
26.9mm, an effective diameter of 16.5mm, and a thickness of
11mm” Cutting system: 4 independent cutting pieces, each piece
can be individually closed, and can be rotated 90°
Atomization system: 0~100% linear atomization
Aperture system: 6%~100% smooth adjustment
Zoom system: 5.5°~60” linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and
random strobe and pulse strobe horizontal scanning can be
selected
Controls And Procedures
Signal interface: optional three-core Kayimo/five-pin Kayimo
seat
Control mode: DMX512, RDM, self-propelled, master-slave, voice
control
Channel mode: 36 international standard DMX512 channels
Display system: 2.7-inch touch LCD display, Chinese and English
display, 180-degree rotation
Pan&Tilt Axis
Pan rotation angle: 540° (16 bit precision scanning)
Tilt rotation angle: 270° (16 bit precision scanning)
Pan/Tilt axis position correction: five-phase motor with
magnetic encoding positioning function
Lighting Specifications
Protection class: Ip20
Working environment: 0-45C
Height: 800mm
Width: 510mm
Depth: 345mm
Net weight: 43KG
Gross weight: 51.5KG
Shell material: flame retardant, high temperature resistant,
folding integrated lamp hook
