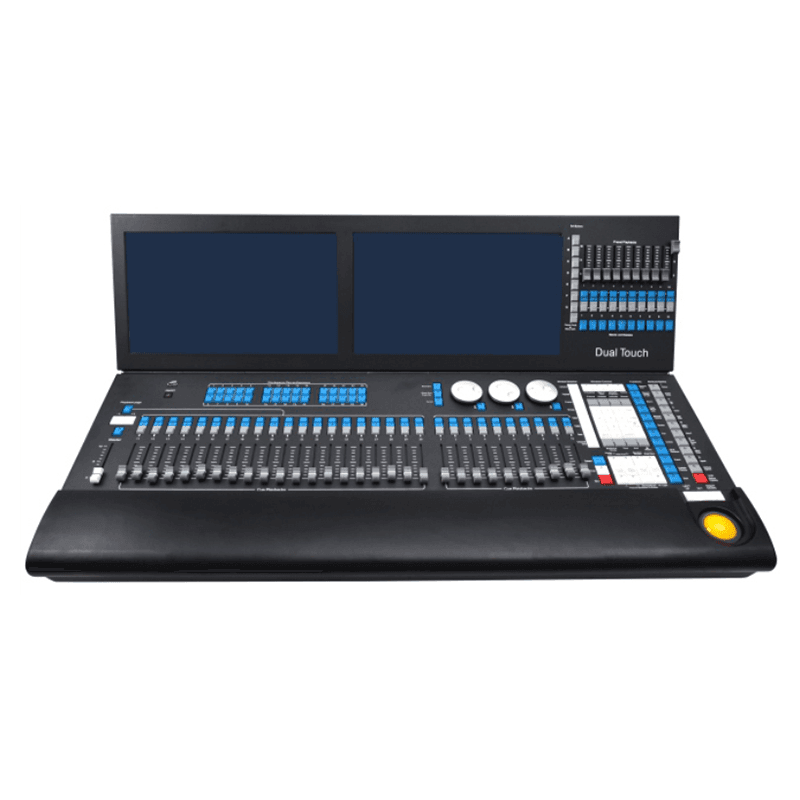

30 playback faders, 10 preset faders, 40 Macro
programmable function keys
3 metal precision photoelectric encoders, a trackball
Two 15.6″high-brightness full-view industrial display
screens, high-sensitivity Taiwan 5-wire resistive touch
screens, and the screen angle can be adjusted
electrically
Taiwan industrial motherboard, dual gigabit network
ports, 120G SSD hard disk, 8G memory, I7 CPU with a
main frequency of 2.8G, built-in uninterruptible power
supply (UPS)
Leading Titan operating system, performance files are
common to all Titan system consoles
10000 virtual replay flipping pages
Provide a multi-language operation interface
Built-in lighting simulator and lighting library writing
software
Multiple working windows provide users with easy
operation and configuration of lamp data
Support Ethernet port output, compatible with
standard protocols such as Artnet, Wendi, Avotalk &
CITP
6144 channels, 12 groups of independent DMX512
outputs, plus an Ethernet expander can increase the
output channels to 10240
(Extensible to 32768 output channels through Titan
Net Processor)
There are video media material thumbnail previews
and operating system
The unique “Quicketch”hand-drawn tool can quickly
create custom graphic annotations
MIDI input controls lighting effects and triggers time
code to automatically replay performance programs
The powerful internal lamp library can accommodate
more than 4500 lamp data
Compatible with smartphone Android and Apple
system remote control operation
Console size: 94cm*66cm*21cm
Flight case size: 100CM*87CM*34CM
Net weight: 32KG,
gross weight: 68KG
