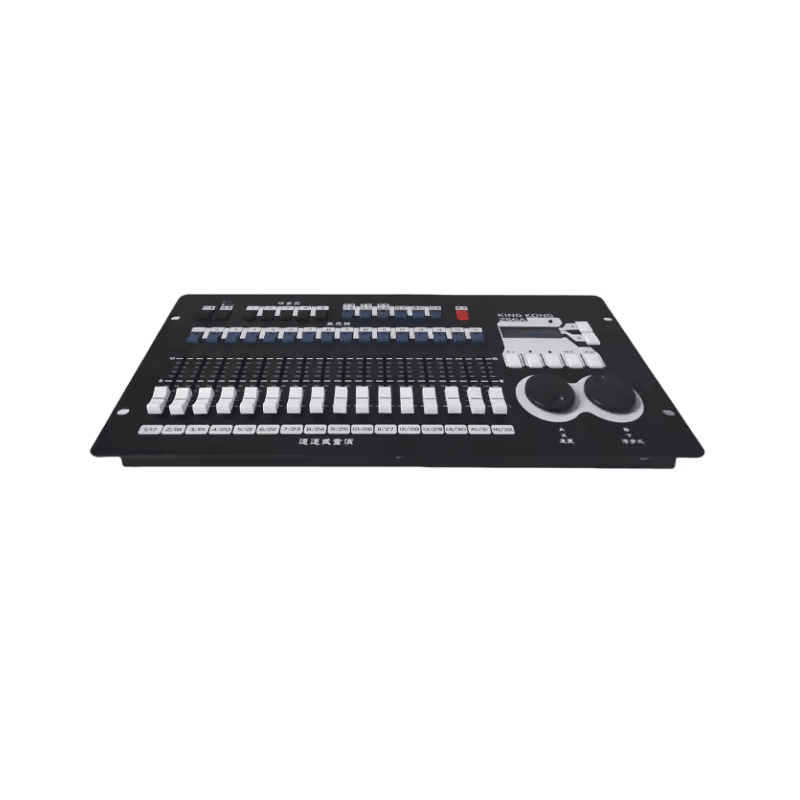

DMX512/1990 standard, up to 256 DMX control
channels, one optically isolated signal output.
Maximum control of 16 computer lights or 64 ways of
dimming.
Automatically generate light library
LCD display with backlight, the first Chinese and
English display switchable interface.
The panel is available in both Chinese and English.
Built-in graphic trajectory generator, with 35 built-in
graphics, which is convenient for users to control the
graphic trajectory of computer lights, such as drawing
circles, spirals, rainbows, chasing, and other effects.
Graphical parameters (such as amplitude, speed,
interval, wave, and direction) can be set independently,
making it more convenient and quick to create the
desired shape and scene.
Can store 80 playback scenes, used to store multi-step
scenes and single-step scenes.
Each multi-step scene can store up to 600 single steps.
16 replay scenes can be output and run at the same
time.
With 16 centralized control faders.
Compatible with button point control and fader
centralized control.
Shutdown or sudden power failure and other data can
be stored in memory.
The U disk can back up the data of the console and
supports reimporting to the console for use, and the
data of the same type of console can be shared.
Support remote software upgrades, adding new
functions anytime and anywhere.
The preset fader can control the attributes of computer
lights, and the attribute control is more convenient and
quick.
Support immediate blackout
