KL-YL05

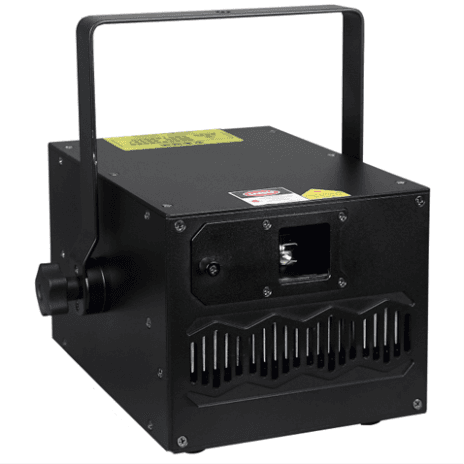

KL-YL05 5W Full Color Laser Light

Technical Specification

Power Consumption: 78W
Input Voltage: AC 100-240V 50/60Hz
Total Laser Power: 5W RGB semiconductor integrated
laser
Laser Power/Wavelength: Red:1000mW/638nm
Green:1500mW/520nm Blue:2500mW/445nm
Scan System: ILDA 30K scanner
Scanning Angle: ±30°
Modulation: Analog Modulation
Control Mode: DMX-512/Auto/Sound Active/Master-
Slave/PC
DMX Channel: 17CH
Internal Pattern: 256 patterns
SD Card: with 1PC SD card
Display: LCD display with knob
IP Rating: IP20
Dimension 30*26*17cm
N.W: 7.5KG
Features:
1. RGB full-color laser light with a high-speed scanner
to create a beam show, a logo show, and a text show.
2. Support laser show software,e.g.Panglin, Phoenix,
and Mamba.
3. Use the SD card to save patterns and then press the
buttons on the LCD display or use the DMX controller
to select patterns saved in the SD card.
4. Max 16 units work synchronously under the control
of a computer
5. Safety capacity: design according to security and
good performance, safe to humans and the
environment.
6. Auto close light when the scanner has trouble
7. Applicable for disco, club, KTV, pub, Bar, family
party, etc
