KL-ML660Z

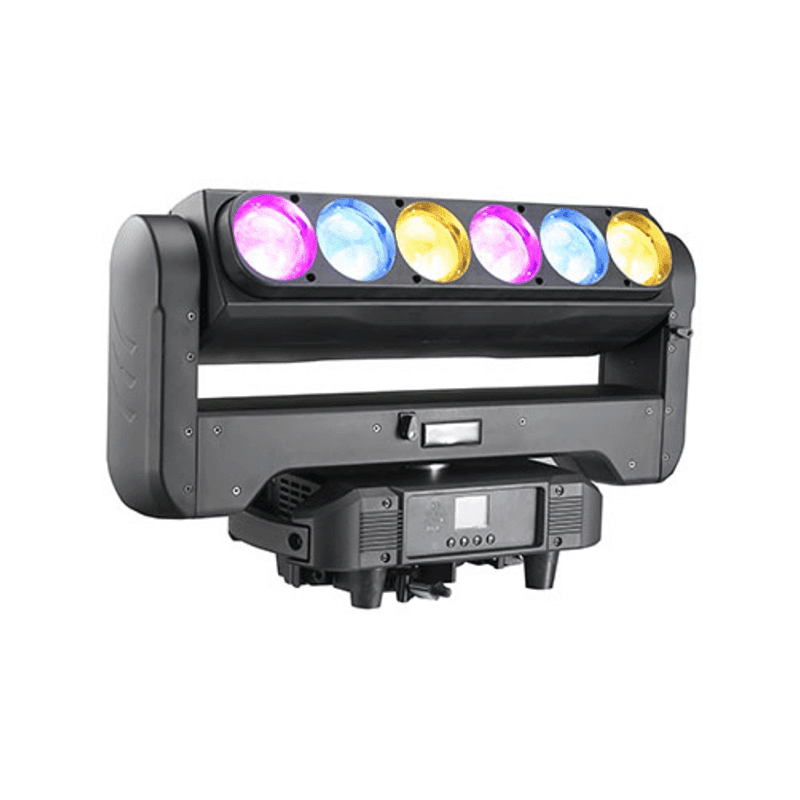

KL-ML660Z 6PCS*60W LED Zoom Moving Light

Technical Specification

Light Source
7*60W 4IN1 RGBW LED
50,000 hours lifespan and low power
consumption
Optical System
Beam Angle:3°- 45°
Dimmer:0~100% smooth dimming; two dimmer
models in optional( delay or without delay)
Controls Program
DMX Channel: 21/23/35/42/49/51/56CH
Control Modes:
DMX512/masterslave/AutoRun/Music
Maximum number of connections: 220V: Within 8
units, the wire needs 2.5 square meters /120V:
Within 4 units, the wire needs 2.5 square meters
Display: 1.8-inch TFT color LCD display, 180-
degree rotatable
Pan And Tilt
Pan axis movement: 540°
Tiit axis movement: 270°
Pan/Tilt Resolution: 8/16 bit
Automatic pan/tilt position correction
Electrical Control
Power Consumption: 500W
Power Voltage: AC 100-260V, 50/60Hz
Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: Powercon in/out
Lighting Specifications
Length:376mm
Width: 280mm
Height: 422.5 mm
Product Net Weight: 16.5kg
Gross weight: 64.5kg
