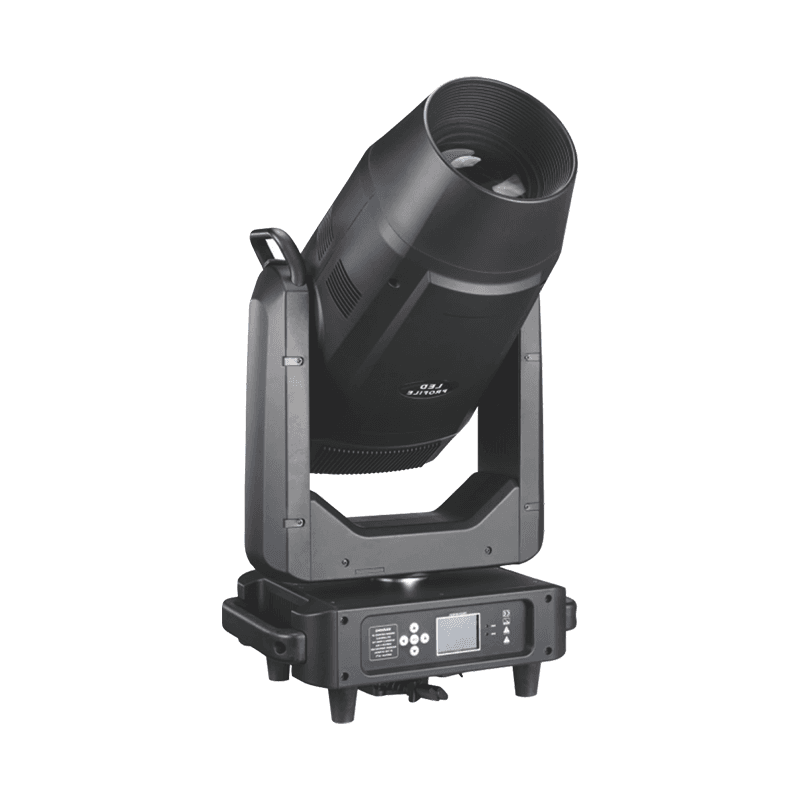

Light Source
Light source: 600W LED module
LED life: 20,000 hours

Optical System
Color temperature: 6800K
Caliber: 138MM
Color rendering index: standard mode Ra>75 high display
mode Ra>90
Luminous flux: 24000LM
Power Supply
Input voltage: AC100-240V, 50/60Hz
Rated power: 900WFunctional Effect Fixed color: 6 colors + white light
Color mixing system: Independent CMY color mixing system
Color temperature adjustment: Independent CTO2500-7000K
Linear adjustment Prism disk: 3 prisms
Effect plate: dynamic effects such as stunning simulated
dynamic flames, gurgling water, etc.
Fixed pattern: 7 metal fixed pattern pieces + white circle
Rotating gobo: 7 gobos (pluggable), outer diameter 22.9,
effective diameter 16mm, thickness 1.1mm.
Cutting system: 4 independent cutting pieces, each piece can
be closed separately, and can be rotated 90°
Atomizationsystem: 0~100% linear atomization
Aperture system: 5%~100% smooth adjustment
Zoom system: 4.5°~50” linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and
random strobe and pulse strobe horizontal scanning can be
selected
Controls and Procedures
Signal interface: optional three-core card base/five-pin card
base
Control mode: DMX512, RDM, self-propelled, master-slave,
voice control
Channel mode: 36 international standard DMX512 channels
Display system: 2.7-inch touch LCD display, Chinese and
English display, 180-degree rotation.
Pan&Tilt Axis
Pan rotation angle: 540° (16-bit precision scanning)
Tilt rotation angle: 270° (16-bit precision scanning)
Pan&Tilt axis position correction: five-phase motor with
magnetic encoding positioning function
Lighting Specifications
Protection class: Ip20
Working environment: 0-45℃
Height: 770 mm
Width: 424mm
Depth: 286 mm
Net weight: 35KG
Gross weight: 41KG
