KL-BSW400L

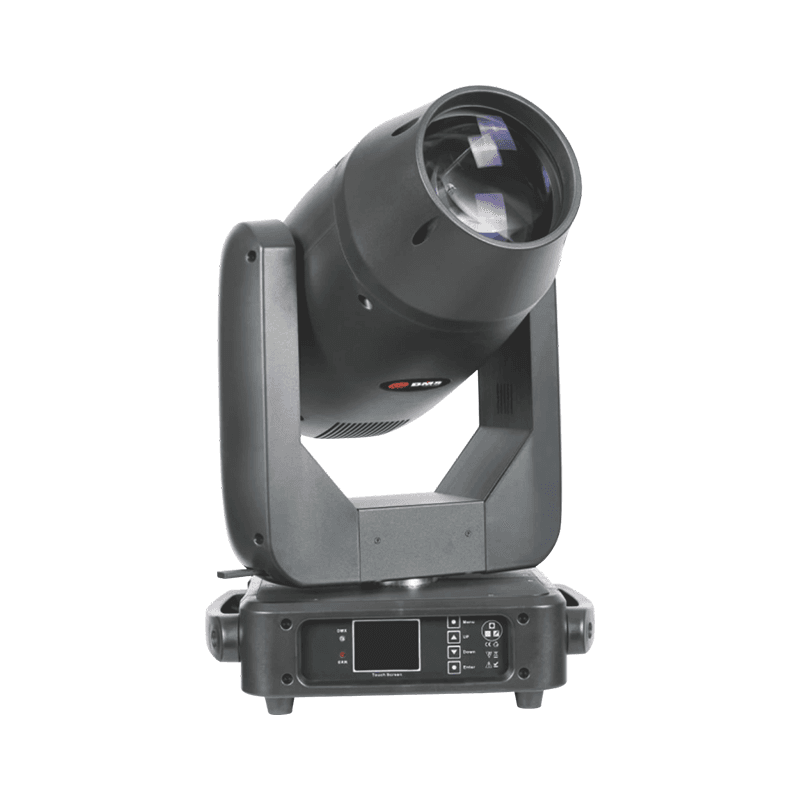

KL-BSW400L 400W LED Beam/Spot/Wash Moving Head Light

Technical Specification

Light Source
Light source: 400W LED module
Light source life: 20,000 hours
Optical System
Color rendering index: Ra>85
Lens: high-precision optical lens
Color temperature: 7500K
Power Supply
Input voltage: AC100-240V, 50/60Hz
Rated power: 550W
Functional Effect
Fixed color: 8 colors + white light
Color mixing system: Independent CMY color
mixing system
Color temperature adjustment: independent CTO
2700-6500K linear adjustment
Prism disk: rotating 8 prisms + 5 rows of mirrors
Fixed pattern: 10 fixed pattern pieces + 2 white
circles
Rotating gobo: 7 rotating gobos (pluggable) outer
diameter 22.9mm, effective diameter 11mm+white
circle
Atomization system: mild atomization sheet
Zoom system: 2.5°~43° linear focus
Dimming system: 0-100% linear adjustment
Strobe system: fast strobe, pulse strobe
Controls and Procedures
Control mode: DMX512, RDM
Channel mode: 23 international standard DMX512
channels
Display system: 2.5-inch touch LCD display,
Chinese and English display, 180-degree rotation
Pan&Tilt Axis
Pan rotation angle: 540°
Tilt rotation angle: 270°
Pan&Tilt axis position correction
Lighting Specifications
Height: 640mm
Width: 380 mm
Depth: 275mm
Net weight: 22.5KG
Protection class: Ip20
Working environment: 0-45℃
