HL-BSW250L
hl ml250 250w led moving head light
HL-BSW250L

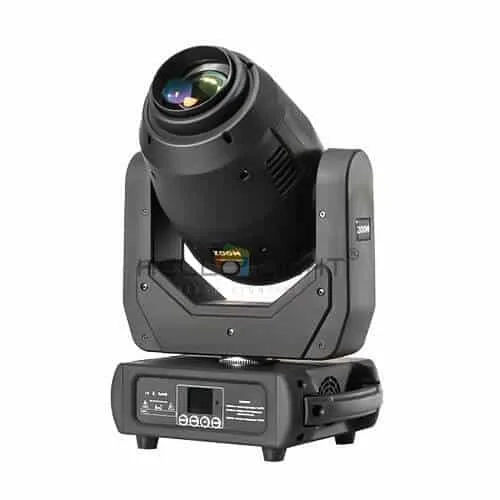

HL-BSW250L 250W LED B/S/W 3in1 Moving Head Light

250W LED 3in1 Moving Head Light using 250W high output white light LED, strong light output, energy-saving, and environmental protection, integrating powerful light beam and washing function. Equipped with an electronic linear zoom system, the zoom range is 5.5°~30°, and the color in the dimming range is stable and uniform, making it easy to create a wonderful and dynamic world. Suitable for theaters, catwalks, bars, dance halls, churches, indoor/outdoor music stages, etc.

Feature

  • 250W high output white light LED
  • Total power consumption: 350W
  • Color wheel: one color wheel, one color wheel, 7 kinds of color chips
  • 1 rotating gobo wheel: 7 gobos + white, wheel rotation and shaking
  • 1 static gobo wheel: 8 gobos + white, wheel rotation and shaking
  • Electronic linear zoom system
  • Zoom range: 5.5°~30°
  • 0~100% smooth dimming
  • Quick silent operation
  • Flicker-free management
  • Dust-proof and oil-proof design

Technical Specification

Light Source

  • 250W High Output White LED
  • 50,000 hours lifespan and low power consumption



Optical System

  • Zoom angle 5.5°~30°, focus function
  • High light output,13300LUX@5M at White light zoom-in,
  • 950LUX@5M at White light zoom out



Controls And Procedures

  • Color Wheel: 7 colors +white, color fine-tuning, rotation with variable direction and speed
  • 1 Rotation Gobo Wheel: 7 gobos + white, wheel rotation and shake
  • 1 Static Gobo Wheel: 8 gobos + white, wheel rotation and shake
  • Prism: 8-facet Prism, bi-directional rotatable at variable speeds
  • Frost effect
  • High-speed strobe effect with 1-25 flashes per second
  • Internal program available
  • 16/18 DMX Channels USITT DMX-512
  • DMX 512, master-slave and sound activated controllable or auto operation
  • Colorful LCD display



Pan And Tilt

  • Horizontal scan: 540° (16-bit precision scan)
  • Vertical scan: 270° (16-bit precision scan)
  • Automatic pan/tilt position correction



Electrical And Connectors

  • Input Voltage: AC90-260V 50/60Hz
  • Control Signal: DMX 512, master-slave and sound-activated or auto operation
  • Control Channel: 16/18 DMX Channels USITT DMX-512
  • Power Consumption: 350W
  • 3-pin & 5-pin XLR connectors IN/OUT
  • Two 1/4 turn fastening Omega Clamps



Fixture Specifications

  • Length: 320 mm
  • Width: 220mm
  • Height: 480 mm
  • Product net weight: 13.50kg
  • Packing size: 365(L)*280(W)*600(H)mm
  • Product gross weight: 16.50kg



Working Environment

  • Protection level: IP20
  • Temperature protection function, when the internal temperature is up to 40° then the fans begin to work when the internal temperature is up to 70°and the brightness reduces by half.



Approve

  • Conforms to CE standards



Install

  • Can be installed horizontally or vertically
  • Universal operating position
  • There are 2 pairs of 1/4 turn lock points under the base
  • 2 quick lock clamps with 1/4 turn lock for 50 mm trusses
  • Security cable connection point



Included Items

  • User manual
  • power cable
  • There are 2 pairs of 1/4 turn lock points under the base



Optional Accessories

  • Fixture:
  • Signal line: 3-core signal line
  • Security cable:
